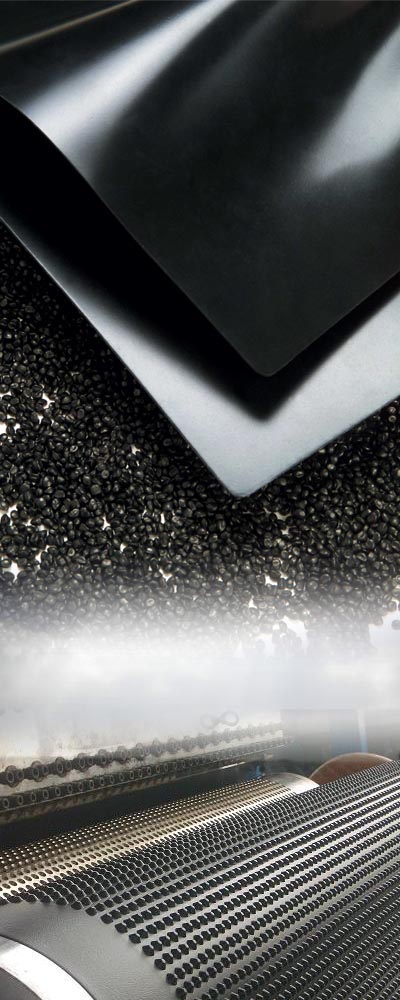

An essentially impermeable material, in the form of manufactured sheet, which may be synthetic, bituminous or bentonitic, used in geotechnical, environmental, hydraulic and transportation engineering applications.
HDPE Smooth Geomembrane
|
|
|
|
Property
|
Test Method
|
MD
500
|
MD
750
|
MD
1000
|
MD
1500
|
MD
2000
|
MD
2500
|
|
Minimum Average Values
|
|
|
|
|
|
|
|
|
Thickness, mm
|
ASTM D 5199
|
0.50
|
0.75
|
1.0
|
1.5
|
2.0
|
2.5
|
|
Density, g/cm3
|
ASTM D 1505
|
0.94
|
0.94
|
0.94
|
0.94
|
0.94
|
0.94
|
|
Tensile Properties (each direction)
|
ASTM D 6693
|
|
|
|
|
|
|
|
1. Strength at Yield, N/mm width
|
Type IV Specimen
|
8
|
11
|
13
|
23
|
30
|
37
|
|
2. Strength at Break, N/mm width
|
,@ 50 mm/min
|
13
|
20
|
25
|
42
|
57
|
71
|
|
3. Elongation at Yield, %
|
G.L.33mm
|
13
|
13
|
13
|
13
|
13
|
13
|
|
4. Elongation at Break, %
|
G.L.51mm
|
700
|
700
|
700
|
700
|
700
|
700
|
|
Tear Resistance, N
|
ASTM D 1004
|
72
|
92
|
120
|
175
|
257
|
320
|
|
Puncture Resistance, N
|
ASTM D 4833
|
170
|
260
|
325
|
490
|
650
|
860
|
|
Carbon Black Content,%
|
ASTM D 1603
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
|
Carbon Black Dispersion
|
ASTM D 5596
|
Satisfactory
|
Satisfactory
|
Satisfactory
|
Satisfactory
|
Satisfactory
|
Satisfactory
|
|
Width
|
|
7mtr
|
7mtr
|
6mtr
|
6mtr
|
5mtr
|
5mtr
|
|
|
|
|
Textured Geomembrane
|
|
|
|
Property
|
Test Method
|
MX
750
|
MX
1000
|
MX
1500
|
MX
2000
|
MX
2500
|
|
Minimum Average Values
|
|
|
|
|
|
|
|
Thickness, mm
|
ASTM D 5199
|
0.75
|
1.0
|
1.5
|
2
|
2.5
|
|
Density, g/cm3
|
ASTM D 1505
|
0.94
|
0.94
|
0.94
|
0.94
|
0.94
|
|
Tensile Properties (each direction)
|
ASTM D 6693
|
|
|
|
|
|
|
1. Strength at Yield, N/mm width
|
Type IV Specimen
|
11
|
15
|
23
|
30
|
35
|
|
2. Strength at Break, N/mm width
|
,@ 51 mm/min
|
8
|
11
|
16
|
21
|
27
|
|
3. Elongation at Yield, %
|
G.L.33mm
|
13
|
13
|
13
|
13
|
13
|
|
4. Elongation at Break, %
|
G.L.50mm
|
100
|
100
|
100
|
100
|
100
|
|
Tear Resistance, N
|
ASTM D 1004
|
93
|
122
|
187
|
245
|
300
|
|
Puncture Resistance, N
|
ASTM D 4833
|
240
|
280
|
415
|
530
|
770
|
|
Carbon Black Content,%
|
ASTM D 1603
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
|
Carbon Black Dispersion
|
ASTM D 5596
|
Satisfactory
|
Satisfactory
|
Satisfactory
|
Satisfactory
|
Satisfactory
|
|
Width
|
|
7mtr
|
7mtr
|
6mtr
|
5mtr
|
5mtr
|
|
|
|
|
LLDPE Smooth Geomembrane
|
|
|
|
Property
|
Test Method
|
ML
500
|
ML
750
|
ML
1000
|
ML
1500
|
ML
2000
|
ML
2500
|
|
Minimum Average Values
|
|
|
|
|
|
|
|
|
Thickness, mm
|
ASTM D 5199
|
0.5
|
0.75
|
1.0
|
1.5
|
2.0
|
2.5
|
|
Density, g/cm3
|
ASTM D 1505
|
0.92
|
0.92
|
0.92
|
0.92
|
0.92
|
0.92
|
|
Tensile Properties (each direction)
|
ASTM D 6693
|
|
|
|
|
|
|
|
1. Strength at Break, N/mm width
|
Type IV Specimen
|
13
|
20
|
27
|
40
|
52
|
66
|
|
|
,@ 51 mm/min
|
|
|
|
|
|
|
|
2. Elongation at Break, %
|
G.L.33mm
|
800
|
800
|
800
|
800
|
800
|
800
|
|
Tear Resistance, N
|
ASTM D 1004
|
50
|
67
|
100
|
150
|
200
|
250
|
|
Puncture Resistance, N
|
ASTM D 4833
|
120
|
190
|
250
|
370
|
500
|
610
|
|
Carbon Black Content,%
|
ASTM D 1603
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
2.5
|
|
Carbon Black Dispersion
|
ASTM D 5596
|
satisfactory
|
satisfactory
|
satisfactory
|
satisfactory
|
satisfactory
|
satisfactory
|
|
Width
|
|
7mtr
|
7mtr
|
7mtr
|
6mtr
|
5mtr
|
5mtr
|
|
|
|
|
|
